Easy Gripper Loader

Handling AGRO and EM/OTR tyres and wheels with front loader

Secure and firm 3-point grip
Improves the ergonomic working environment
Simplifies mounting and dismounting of tyres and wheels
Easy to adjust tyres and wheels in relation to hubs and bolts
With Flat Top Arm as standard for limited tyre clearance

Improve safety and efficiency

The Easy Gripper Loader makes it safe and easy to handle AGRO and EM/OTR tyres and wheels. It eliminates the need for heavy manual labour such as lifting, pulling and pushing, thereby reducing the risk of both workplace accidents and strain injuries.
The Easy Gripper Loader is a budget-friendly alternative to our more advanced Easy Grippers – without compromising on safety or efficiency.

Capability

The Easy Gripper Loader have a gripping range of Ø1.200 – 2.390 mm (47 – 94”) and a lifting capacity of 1.200 kg (2.646 lbs) at a CoG of 500 mm (19.7”).

Tyre Handling in Any Terrain

The Easy Gripper Loader is especially suitable for tyre handling in areas with unpaved surfaces or directly in the remote field.

Interchangeable Gripper Arm Sets

The gripper arms are supplied as standard in two different set-sizes, covering the following gripping diameters:

1.200 – 1.800 mm (47 – 71”) – short gripper arm set
1.790 – 2.390 mm (70 – 94”) – long gripper arm set

A gripper arm set is supplied with a flat top arm, which makes it possible to grip a wheel when, for example, there is limited space between the tyre and the mudguard.

Standard included

The Easy Gripper Loader comes standard with a hydraulically controlled gripping function, manual ±25° rotation, one set of gripper arms with flat top arm in any size, and is prepared for mounting on a standard ISO/FEM/ITA class 2 fork carriage.

Optional Accessories

Quick coupler attachment system for JCB, Manitou, etc.
Interface for mounting on a standard ISO/FEM/ITA class 3 fork carriage
Customisation on request

What our customers say

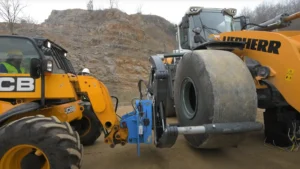

“Thanks to the Easy Gripper, we can change and repair large industrial tyres even faster and safer, because time is money!”

Somos Tibor ATRA Kecskemét Kft

Read Case Story

Interested in this product?

Easy Gripper Loader – Dual wheel fitted in under 2 minutes – by a first-time user!

Brochure

PDF

Brochure (Danish Version)

PDF

Technical Data

Weight (short arms): 230 kg (507 lbs)
Weight (long arms): 250 kg (551 lbs)
Lifting capacity:
– 1.200 kg (2.646 lbs) at (C) from (B) 500 mm (19.7”)
Tyre diameter: 1.200 – 2.390 mm (47.2 – 94.1”)
Gripping length: 600 mm (23.6”)

Technical Requirements

Lifting capacity: Minimum 2 ton depending on carrier
Attachment: ISO/FEM/ITA Class 2 / Loader specific
Hydraulic supply: 1 double acting circuit (A+B port)
Pressure min-max: 110 – 250 bar (1.596 – 3.626 psi)
Return pressure: max. 10 bar (145 psi)
Flow: max. 40 l/min. (11 gal/min.)

Loader
(A) CoG Gripper = 160 mm (6.3”)
(B) Face of Gripper = 250 mm (9.8”)
(C) CoG Load = 750 mm (29.5”)
(D) Length = 840 mm (33.1”)

Easy Gripper Loader - short gripping arms - spec drawing

Short gripping arm set
(E) 1.200 – 1.800 mm (47.2 – 70.9”)

Easy Gripper Loader - long gripping arms - spec drawing

Long gripping arm set
(F) 1.790 – 2.390 mm (70.5 – 94.1”)

Mobile Tyre Service

When mounted on a telehandler or front loader, the Easy Gripper Loader allows a single operator to carry out tyre service on-site – even in rough or uneven terrain.

Simplifies Mount/Dismount

The integrated +/-25° manual controlled rotation together with the tilt delivered by the carrier simplifies alignment of tyre or wheel with hub or bolts.

Efficient logistics

The Easy Gripper Loader handles tyres and wheels both vertically and horizontally, enabling fast loading and unloading as well as optimisation of storage options.
