Easy Grippers

Easy Gripper 2400-2T Compact

Professional tools for handling of OTR/EM tyres up to 37.25R35

Unique and safe 3-point grip
Precise rotation +/-25°
Horizontal to vertical tilt depending on carrier
Integrated camera system for optimal view
Tools for safe handling of tyre rings and rim
Prevent damage to tyres, rims & equipment
Easy hook on/off attachment
Customization on request

Capability

The Easy Gripper 2400-2T Compact has a gripping range of Ø850 – 2.400 mm (34 – 94”) and a lifting capacity of 2 ton (4.400 lbs) at a CoG of 550 mm (22”) from face of gripper. When handling full wheel assemblies as inside duals, the Gripper handles up to 24.00R35 tyres.

For any type of carrier

Depending on the tilt capability of the carrier vehicle, the Easy Gripper 2400-2T is available with either a 90° tilt module for forklifts, a 30° tilt module, or in a compact version without tilt for use on telehandlers, wheel loaders and truck cranes. On electrical stackers and reach trucks and when working space is limited, see Easy Gripper Workshop 2T.

Standard features

Unique and safe 3-point grip
Prevents accidents.
Prevents deformation of tyres.
Prevents damages to tyres, rims and equipment.
Integrated camera system for optimal view
With automatic IR function in insufficient lighting conditions.
Control system with pressure indicator
Precise rotation +/-25°
Horizontal to vertical tilt depending on carrier
Attachment on standard ISO/FEM/ITA Class 3 or 4 fork carriage

Optional accessories

Compact attachment system
Can be customized with quick coupler option depending on carrier.
30° tilt module or pre-angled attachment plate
Required if carrier cannot deliver the required 90° tilt
Second camera for view of bolt diameter
For even more comprehensive and precise handling of tyres, wheels, and rings.
LED working light
Easy shift of gripping pipes for various purposes
Telescopic pipes for long reach, to provide room for the tyre fitter and for dual tyre handling.
Flat top pipe for limited clearance between tyre and mudguard
Ring Handling Tools Tools for safe handling of multi-piece rim wheels
Enables the tyre fitter to handle Locking Rings, O-Rings, Side Rings and Bead Seat Bands in a safe and secure manner.
RIM Handling Tools
The RIM Handling tools are yet a safety and efficiency add-on to the Easy Gripper program and improve the handling of OTR rims.
Customization on request

What our customers say

“Thanks to the Easy Gripper, we can change and repair large industrial tyres even faster and safer, because time is money!”

Somos Tibor ATRA Kecskemét Kft

Read Case Story

Interested in this product?

Brochure

PDF

Technical Data

Weight: Compact = 675 kg (1.488 lbs) / 30° = 710 kg (1.565 lbs)
Lifting capacity:
– 2.000 kg (4.400 lbs) at (C) from (B) 550 mm (21.7”)
– 1.425 kg (3.142 lbs) at (D) from (B) 825 mm (32.5”)
Tyre diameter: 850 – 2.400 mm (33.5 – 94.5”)
Standard pipes: Ø140 x 600 mm (5.5 x 23.6”)
Telescopic pipes: Ø152.8 x 600 -> 875 mm (6 x 23.6 -> 34.5”)

Technical Requirements

Lifting capacity: Minimum 4.5 ton depending on carrier
Attachment: ISO/FEM/ITA Class 3 or 4 / Loader specific
Electrical supply: 24V / min 10A
Hydraulic supply: 1 double acting circuit (A+B port)
Pressure min-max: 150 – 250 bar (2.175 – 3.626 psi)
Return pressure: max. 10 bar (145 psi)
Flow: max. 50 l/min. (13 gal/min.)

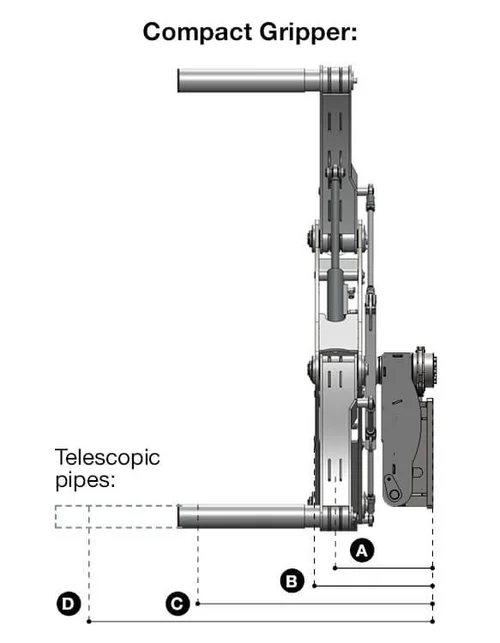

Easy Gripper 2400-2T Compact - spec drawing

Compact
(A) CoG Gripper = 430 mm (16.9”)
(B) Face of Gripper = 490 mm (19.3”)
(C) CoG Load1 = 1.040 mm (41.0”)
(D) CoG Load2 = 1.315 mm (51.8”)

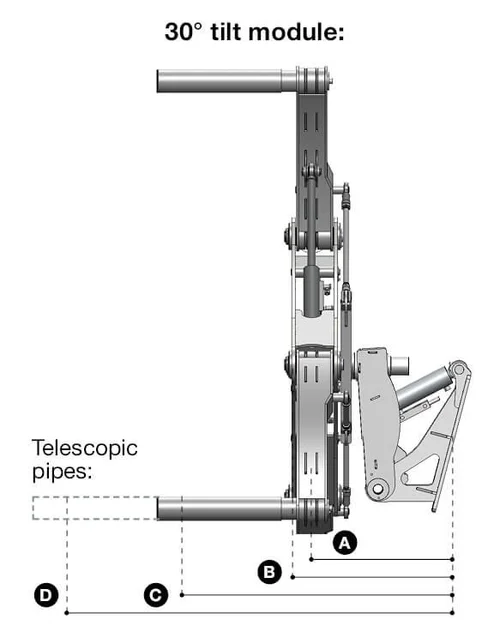

Easy Gripper 2400-2T - 30 degree tilt module - spec drawing

30° tilt module
(A) CoG Gripper = 600 mm (23.6”)
(B) Face of Gripper = 790 mm (31.1”)
(C) CoG Load1 = 1.340 mm (52.8”)
(D) CoG Load2 = 1.615 mm (63.6”)

Underground mines

Solves issues with limited clearance around the tyres. The 2 bottom pipes grip the tyre below the fender, and the top pipe can easily be changed to a flat arm to fit between tyre and fender.

Breakdown service

Used on front loaders, telehandlers or truck cranes you get a perfect solution to provide tyre service in the field. You can do the job without any equipment or assistance from your customer, do it faster and make a hard and risky work safe for your operators.
