Easy Gripper 1700

Professional tools for handling of tyres and wheels up to 18.00R25

Unique and safe 3-point grip
Precise rotation +/-25°
90° tilt horizontal to vertical
Integrated camera system for optimal view
Prevent damage to tyres, rims & equipment
Easy to operate
Customization on request

Capability

With a gripping range from 480 – 1.690 mm (18.9 – 66.5”) and a lifting capacity of 600 kg (1.320 lbs) at a CoG of 230 mm (9.1”) the Easy gripper 1700 is developed to handle small and heavy OTR and AGRO tyre and wheel assemblies for the Aviation / Military / Mining / Ports / Industrial / OEM industry.

For Forklifts and Electrical Stackers

The Easy Gripper 1700 with the 90° tilt module is ideal for use on relatively small forklifts. Mounted on an electrical “walkie stacker” the Easy Gripper 1700 is ideal for operating at assembly lines or in workshops with limited space.

Standard features

Unique and safe 3-point grip
Prevents accidents.
Prevents deformation of tyres.
Prevents damages to tyres, rims and equipment.
Integrated camera system for optimal view
With automatic IR function in insufficient lighting conditions.
90° tilt, horizontal to vertical
Precise rotation +/-25°
Attachment on standard ISO/FEM/ITA Class 2 fork carriage

Optional accessories

Easy shift of gripping pipes for various purposes
Choose between gripping pipes with “Friction Rings” for a firm and secure grip or “Rubber Coated” ones for a more gentle but still secure grip.
Flat top arm for limited tyre clearance.
Quick Shift Module
To get a versatile use of the carrier a Quick Shift Module can be included as part of the Easy Gripper 1700.
It is mounted on the carrier, and the Easy Gripper is then hooked on to this module. Makes hook on/off easy.
Hydraulic Multi Connection
To optimize quick shift by disconnecting the hydraulic hoses in less than a minute.
Fork Module
The Fork Module is designed to be hooked on to the Quick Shift Module and makes quick shift between Gripper and forks easy.
Customization on request

Turnkey solution

The Easy Gripper 1700 can be delivered as a turnkey solution together an Combi-CS 2000 Counterbalanced Stacker that include +/- 80 mm side shift, slow drive mode and the control build in the tiller as standard features.

What our customers say

“The Easy Gripper gives our workers excellent ergonomic working conditions, and during the use of it we have realized, that the safety the Easy Gripper delivers has no comparison.”

Fernando Balart Austral Mining Services

Read Case Story

Interested in this product?

Technical Data

Weight: 420 kg (926 lbs) / QSM = 75 kg (165.4 lbs)
Lifting capacity:
– 600 kg (1.323 lbs) at (C) from (B) 230 mm (9.1”)
Tyre diameter: 480 – 1.690 mm (18.9 – 66.5”)
Standard pipes: Ø100,5 x 555 mm (4.2 x 21.9”)

Technical Requirements

Lifting capacity: 1.5 to 2 ton depending on carrier
Attachment: ISO/FEM/ITA Class 2
Electrical supply: 12V or 24V / min 10A
Hydraulic supply: 1 double acting circuit (A+B port)
Pressure min-max: 110 – 250 bar (1.596 – 3.626 psi)
Return pressure: max. 10 bar (145 psi)
Flow: max. 40 l/min. (11 gal/min.)

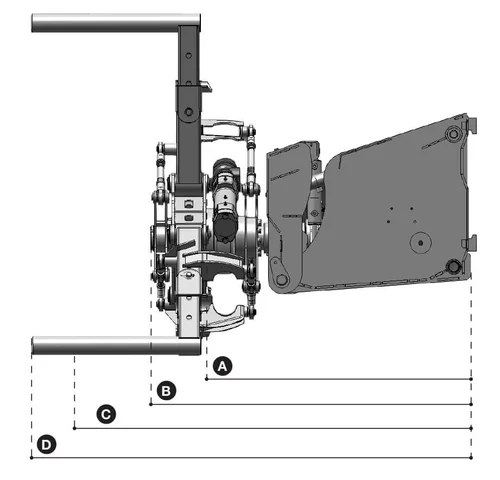

90° tilt module
(A) CoG Gripper = 1.065 mm (41.9”)
(B) Face of Gripper = 1.190 mm (46.9”)
(C) CoG Load = 1.420 mm (55.9”)
(D) Length = 1.650 mm (65.0”)

Aviation

For logistic handling and moving of aircraft tyre and wheel assemblies. To and from stock and hangars. Mounting and demounting of wheels. With a safe grip and tilt and rotation functions.

Military

Ideal to change tyres and wheels in workshops but also outside – depending on the carrier, it is mounted on. Can be mounted as a quick shift attachment. Effectivity, safety, ergonomic improvements.

Mining

Ideal for road trains and other equipment with relatively small and heavy wheels. A great tool for service of tyres and wheels. Effectivity, safety, ergonomic improvements.

Ports

Easy Gripper 1700 can handle the smaller tyres and wheels on some RTG-cranes, Straddle Carriers, AGVs and other equipment. Where safety is important.

Industrial Trucks

Ideal to change tyres and wheels of trucks – especially in heavy industries with trucks with many and heavy wheels. Effectivity, safety, ergonomic improvements.

Workshops & OEM

To mount and demount tyres and wheels. A great and flexible tool for use at assembly lines. Very effective compared to overhead cranes and with improved safety and risk of internal damages.
