Easy Gripper 2160

Professional tools for handling of AGRO tyres and small OTR

Unique and safe 3-point grip
Precise rotation +/-25°
90° tilt horizontal to vertical
Integrated camera system for optimal view
Tools for safe handling of tyre rings and rim
Prevent damage to tyres, rims & equipment
Easy hook on/off attachment
Customization on request

Capability

The Easy Gripper 2160 has a gripping range of Ø700 – 2.160 mm (28 – 85”) and a lifting capacity of 1 ton (2.200 lbs) at a CoG of 500 mm (20”) from face of gripper.

For any type of carrier

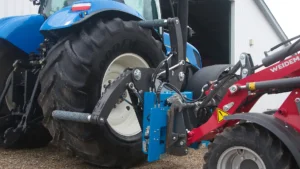

Depending on the tilt capability of the carrier vehicle, the Easy Gripper 2160 is available with either a 90° tilt module for forklifts, a 30° tilt module, or in a compact version without tilt for use on telehandlers, wheel loaders and truck cranes.
On electrical stackers and reach trucks and when working space is limited, see Easy Gripper Workshop.

Standard features

Unique and safe 3-point grip
Prevents accidents.
Prevents deformation of tyres.
Prevents damages to tyres, rims and equipment.
Integrated camera system for optimal view
With automatic IR function in insufficient lighting conditions.
Precise rotation +/-25°
90° tilt, horizontal to vertical
Quick Shift Module
The Quick Shift Module is a mandatory and integrated part of the Easy Gripper 2160.
It is mounted on the forklift, and the Easy Gripper is then hooked on to this module. Makes hook on/off easy.
Attachment on standard ISO/FEM/ITA Class 2 or 3 fork carriage

Optional accessories

Fork Module
The Fork Module is designed to be hooked on to the Quick Shift Module and makes quick shift between Gripper and forks easy.
Hydraulic Multi Connection
To optimize quick shift by disconnecting the hydraulic hoses in less than a minute.
Easy shift of gripping pipes for various purposes
Telescopic pipes for long reach, to provide room for the tyre fitter and for dual tyre handling.
Flat top pipe for limited clearance between tyre and mudguard
Ring Handling Tools Tools for safe handling of multi-piece rim wheels
Enables the tyre fitter to handle Locking Rings, O-Rings, Side Rings and Bead Seat Bands in a safe and secure manner.
RIM Handling Tools
The RIM Handling tools are yet a safety and efficiency add-on to the Easy Gripper program and improve the handling of OTR rims.
Customization on request

What our customers say

“With the Easy Gripper 2160, we've built a safer, more efficient, and more cost-effective tyre service solution. It has allowed us to maximise the productivity of both our equipment and our team - the most valuable assets in our business.”

Nathan Colliss Specialised Tyre Solutions

Read Case Story

Interested in this product?

Brochure

PDF

Technical Data

Weight: Gripper = 550 kg (1,212.6 lbs) / QSM = 75 kg (165.4 lbs)
Lifting capacity:
– 1.000 kg (2.200 lbs) at (C) from (B) 500 mm (19.7”)
– 645 kg (1.422 lbs) at (D) from (B) 775 mm (30.5”)
Tyre diameter: 700 – 2.160 mm (27.6 – 85.0”)
Standard pipes: Ø121 x 600 mm (4.8 x 23.6”)
Telescopic pipes: Ø133.5 x 600 -> 875 mm (5.3 x 23.6 -> 34.5”)

Technical Requirements

Lifting capacity: Minimum 2.5 ton depending on carrier
Attachment: ISO/FEM/ITA Class 2 or 3 / Loader specific
Electrical supply: 12V or 24V / min 10A
Hydraulic supply: 1 double acting circuit (A+B port)
Pressure min-max: 150 – 250 bar (2.175 – 3.626 psi)
Return pressure: max. 10 bar (145 psi)
Flow: max. 50 l/min. (13 gal/min.)

90° tilt module
(A) CoG Gripper = 765 mm (30.1”)
(B) Face of Gripper = 980 mm (38.6”)
(C) CoG Load1 = 1.480mm (58.3”)
(D) CoG Load2 = 1.755 mm (69.1”)

Manufacturers / dealers

Optimized tyre logistics – stack and store tyres and wheels both horizontally and vertically at workshops and warehouse areas. Fast and safe loading and unloading.

Agriculture

Safe and efficient mount and demount of large AGRO tyres with no damages of rims and equipment. Minimize tyre wear and optimize ground pressure, helping protect crops.

Ports

Reduces the down time and improves the safety for the tyre technicians while handling tyres and wheels on Straddle Carriers, Reach Stackers, AGVs and RTG cranes.

Breakdown service

Mounted on front loaders, telehandlers or truck cranes you get a perfect and safe solution to provide tyre service in any environment with just one or two operators … faster than usually.
