Easy Gripper Crane

Easy Gripper Crane Module C

Professional tools for mobile tyre service with truck cranes

Unique and safe 3-point grip
Horizontal/vertical tilt
Precise rotation +/-25°
Integrated camera system for optimal view
Tools for safe handling of tyre rings and rim
Prevent damage to tyres, rims & equipment
Easy hook on/off attachment
Customization on request

Mobile service of OTR/EM and AGRO tyres

When installed on a truck crane, the Easy Gripper Crane Module C gives tyre fitters optimal flexibility. It enables them to transport and mount large OTR or AGRO tyres and wheels, even single-handedly.

Capability

The Easy Gripper Crane Module C provides a tilt function of up to 160° and the Easy Gripper hydraulic functions can easily be incorporated into the crane’s control system.

Standard features

Handles both the Easy Gripper 2160, EG2400-2T and EG2800-3.2T
Unique and safe 3-point grip
Prevents accidents.
Prevents deformation of tyres.
Prevents damages to tyres, rims and equipment.
Precise rotation +/-25°
Tilt function up to 160°
Hydraulic functions can easily be incorporated into the crane’s control system
Crane Module C incl. mounting plate for crane specific insert

Optional accessories

LED working light (2400-2T, and 2800-3.2T only)
Camera system for optimal view
With automatic IR function in insufficient lighting conditions.
Second camera for view of bolt diameter (2400-2T, and 2800-3.2T only)
For even more comprehensive and precise handling of tyres, wheels, and rings.
Easy shift of gripping pipes for various purposes
Telescopic pipes for long reach, to provide room for the tyre fitter and for dual tyre handling.
Flat top pipe for limited clearance between tyre and mudguard
Ring Handling Tools Tools for safe handling of multi-piece rim wheels
Enables the tyre fitter to handle Locking Rings, O-Rings, Side Rings and Bead Seat Bands in a safe and secure manner.
RIM Handling Tools
The RIM Handling tools are yet a safety and efficiency add-on to the Easy Gripper program and improve the handling of OTR rims.
Customization on request

What our customers say

“Now, one man can do the job alone. What took two men 8 hours can be done with one man in just 4 hours.”

Jarmo Maunu KM Däckservice

Read Case Story

Interested in this product?

Brochure

PDF

Technical Data				Technical Requirements Insert for mounting: Crane specific Lifting capacity: Individual calculation Electrical supply: 12V or 24V / min 10A Hydraulic supply: 1 or 2 double acting circuits (A+B port) Hydraulic flow: max. 50 l/min. (13 gal/min.)
	EG2160	EG2400-2T	EG2800-3.2T
Gripping diameter:	700 – 2.160 mm (28-85″)	850 – 2.400 mm (34-94″)	1.150 – 2.800 mm (45-110″)
Lifting capacity:	1.000 kg (2.200 lbs)	2.000 kg (4.400 lbs)	3.200 kg (7.000 lbs)
Total weight:	645 kg (1.422 lbs)	930 kg (2.050 lbs)	2.640 kg (5.820 lbs)

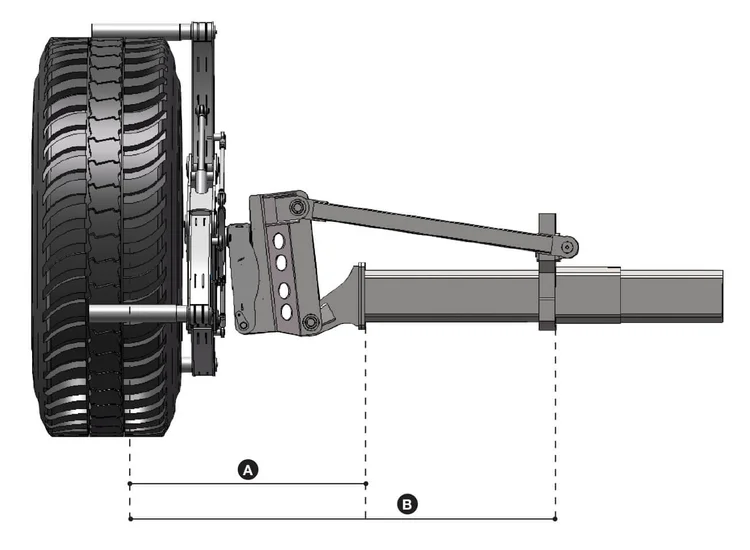

	EG2160	EG2400-2T	EG2800-3.2T
From connection plate to combined CoG (A)	1.990 mm (78”)	2.200 mm (87”)	2.550 mm (100.4”)
From end of 2nd extension to combined CoG: (B)	Crane specific	Crane specific	Crane specific

Safe 3-point grip

The unique 3-point grip offers optimal grip and control, when handling tyres and wheels. Together with the precise rotation and tilt functions hard and dangerous work can be avoided as well as damages on tyres, rims and equipment.

Quick shift & remote control

The Easy Gripper Crane Module can easily and quickly be mounted on the truck crane with a quick shift system. Further, the remote control system can easily be incorporated in the control system of the crane.

Solution for narrow space

Limited clearance around tyres and fenders can quickly be solved. By loosening just one bolt, the top pipe can be exchanged with a flat top arm, and the two bottom pipes carry the tyre below the fender.

Light and compact

The Gripper has a light and compact design to optimize the center of gravity and the load capacity of the crane and of the total solution. The Crane Module gives the configuration a tilt function up to 160°.
