Easy Stacker 800

Professional tools for handling stacks of car tyres

90° tilt horizontal to vertical
Stacking, loading, unloading and internal logistic
Eliminate physical and stressful work – improve safety
Optimize warehouse and logistic without need for pallets
Easy hook on/off attachment
Customization on request

Safe and efficient handling of stacks of car tyres and wheels

The Easy Stacker 800 is developed for safe and efficient handling of stacks of car tyres and wheels with a focus on effective use of space to optimize the storage capacity.

Capability

With a gripping range of Ø400 – 800 mm (16-31”) and a lifting capacity of 160 kg (352 lbs), the Easy Stacker 800 can handle stacks of almost any car tyre with or without rims in sets of 4.

Standard features

The secure and firm grip on the tyres and wheels eliminates e.g. the risk of losing the tyres from the height
Designed to work on a small electrical stacker or forklift in order to reduce manual and stressful operations
Can place stacks of tyres and wheels very close to each other in order to optimize the storage capacity
Can work as high as the stacker you choose for your configuration

Optional features

90° Tilt Module, horizontal to vertical
PowerPack (self-contained hydraulic system)
The length of the gripping panels can be customized to your requirements
Can be customized to handle rims

Customized solution

Can be installed on existing electrical stacker. To be build-in in existing single or double acting hydraulic systems. Requires the hydraulic to be run through mast. Delivered with hydraulic diverting valve, control box and Class 2 mounting blocks.
Can be installed on existing electrical stacker, but delivered with a build-in PowerPack (self-contained hydraulic system) incl. complete control system and Class 2 mounting blocks. Require an electrical supply for the PowerPack.
Can be delivered as a “READY TO GO” turnkey solution incl. electrical stacker. Standard lifting height is 3.20 m or 4.35 m. Can be further customized regarding lifting height of stacker.

What our customers say

“With the Easy Stacker 800 we can load the wheels 2 by 2 directly onto the pallets in half the time!”

Volvo Car Rosersberg Sweden

Read Case Story

Interested in this product?

Brochure

PDF

Technical Data

Weight: 70 kg (154.3 lbs)
Lifting capacity: 160 kg (352.7 lbs)
Tyre diameter: 400 – 800 mm (15.8 – 31.5”)
Grip length: 950 mm (37.7”) – can be customised

Technical Requirements

Lifting capacity: Minimum 250 kg depending on carrier
Attachment: ISO/FEM/ITA Class 2
Hydraulic supply: 1 double acting circuit (A+B port)
Electrical supply – only:
– if 90° Tilt Module included: 12/24 V / min 6A
– if PowerPack included: 24V / min 10A

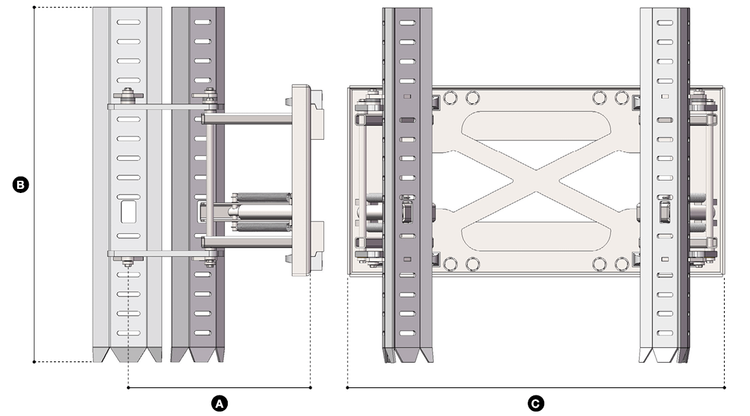

Easy Stacker 800
(A) 500 mm (19.7”)
(B) 950 mm (37.7”)
(C) 1.000 mm (39.4”)

In storage facilities

With a secure and firm grip and with movements optimised for tight spaces, the Easy Stacker 800 can place sets of tyres close to each other to optimize the stock capacity.

In workshops

Lift and move stacks of tyres and wheels from the storage facilities to the workshop and vice versa without any manual and stressful operations. With a firm grip and by use of a small electrical stacker or small forklift.
